How To – Get SAO Utils to work with your VR device

SAO Utils Beta 1 does not provide internal support for VR devices (Oculus Rift, DIY Rift and etc.) currently, but if you want to have a try running SAO Utils in VR mode, we can work around the 3rd-party VR driver to get SAO Utils to work with your VR devices.

This post will show you how to use the open source VR driver Vireio Perception to enable the 3D VR mode for SAO Utils Beta 1.

阅读本文 in 中文 >

1. Download VR driver

Download and unzip Vireio Perception 2.1.6 to somewhere.

* The latest version of Perception (3.0.0 Alpha 2) has been tested and could not work with SAO Utils on Windows 8.1, 3D mode keeps getting black screen.

2. Install VR driver


For 32 bit SAO Utils:

  • Copy Perception\bin\d3d9.dll to SAO Utils\d3d9.dll
  • Copy Perception\bin\hijackdll.dll to SAO Utils\hijackdll.dll
  • Copy Perception\bin\VRboost.dll to SAO Utils\VRboost.dll

For 64 bit SAO Utils:

  • Copy Perception\bin\d3d9_64.dll and rename as SAO Utils\d3d9.dll
  • Copy Perception\bin\hijackdll64.dll to SAO Utils\hijackdll64.dll
  • Copy Perception\bin\VRboost64.dll to SAO Utils\VRboost64.dll

3. Setting up VR driver

Download this configuration sao_utils_beta1_perception_profiles.zip .

For 32 bit SAO Utils:

  • Unzip win32\profiles.xml and override Perception\cfg\profiles.xml

For 64 bit SAO Utils:

  • Unzip win64\profiles.xml and override Perception\cfg\profiles.xml

4. Setting up SAO Utils

Switch to 3D mode through Preference-Appearance Settings-Launcher Mode and switch to Compatible mode through Preference-Graphics Settings-Display Mode.

5. Running SAO Utils in VR mode


We’re almost there, please follow these steps in order to run SAO Utils in VR mode:

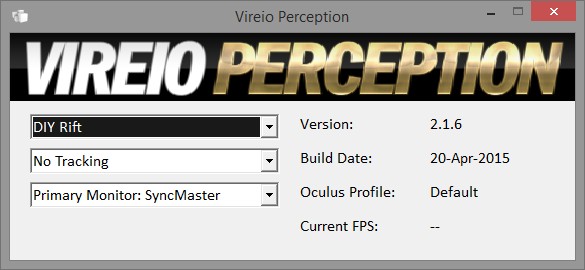

  1. Run Perception\bin\Perception.exe.
  2. Find and choose DIY Rift (DIY or other VR devices) or Oculus Rift (All Variants) in the first drop box.
  3. Start SAO Utils.exe

Link Start !! Welcome to World Art Online !

What’s more


To be honest, we can only do some simple operation on the SAO Utils 3D launcher under VR mode currently, I think that it would be just a technical attempt rather than any other practicability. So please keep staring at the coming browser plug-in, surfing the internet in the virtual world could be just a very near future, I think :)
